Wireless 2.4Ghz Touch Sensor Switch Dimmable and Door Triggered Switch

Product Specification:

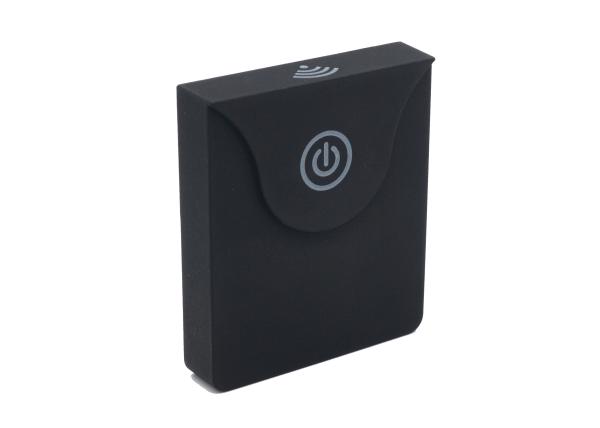

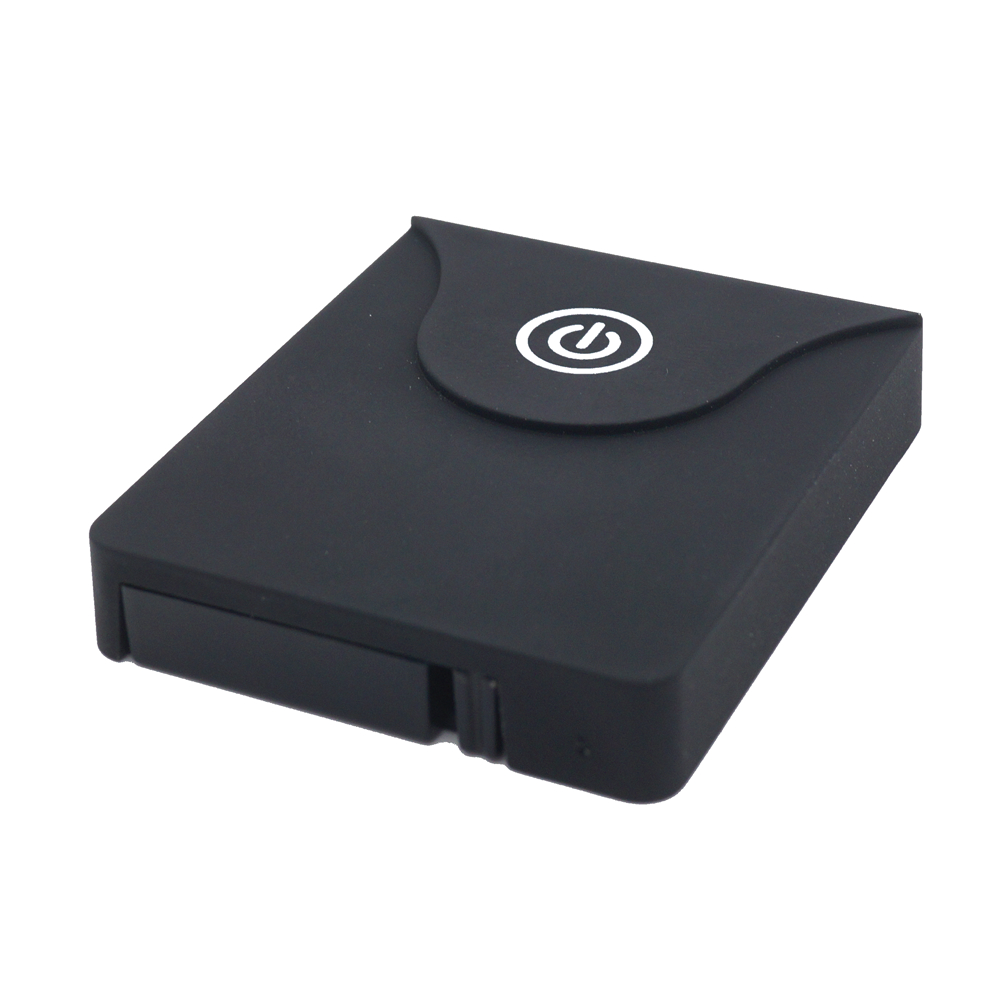

Touch Controller

Product Name: MR-CM2.4G MR-JS2.4G-6

Battery Voltage: 3V

Battery Model: CR2450

HF System: 2.4Ghz

Control Distance: 15 meters

Receiver:

Input Voltage: DC12V-24V

Output Voltage: DC12V-24V

Load Power: 12V 150W / 24V 300W

Frequency: 2.4Ghz

Functional Description:

Touch the fingerprint icon to turn on, touch the icon again to turn on.

Touch and keep on to dim.

With a magnetic ring installed or sticked on cabinet door, this touch switch kit can become door operated.

Coding and Decoding:

Short press the coding key on receiver, then press 1 second the coding key on touch controller back, the lighting fixture will flash 1 time.

It indicates the coding is done successfully.

Short press the coding key on receiver, then press 3 seconds the coding key on touch controller back, the lighting fixture will flash 3 times.

It indicates the decoding is done successfully.

The touch switch kit are coded and can be used directly before it is delivered from factory.

Zhongshan microwave intelligent electronics Co., Ltd was founded in March 2014, is a professional enterprise engaged in the research and development, production, sales and service of sensors.

We are committed to various intelligent scene lighting application solutions. High voltage products are mainly used in hallways, corridors,  staircases, washrooms, cloakrooms, classrooms, offices, warehouses, workshops, parking lots. Low voltage products are mainly used in wardrobe, shoe cabinets, wine cabinets, cabinets, display cabinets and other local professional intelligent lighting applications.

We take "intelligence" as our mission and win respect by excellent product quality. With a strong sense of social responsibility and mission, we will work with all walks of society to create a "new life of intelligent quality".
